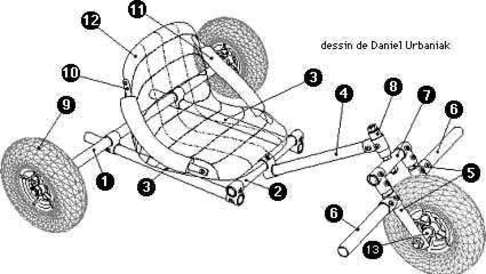

1 – Axle AR (tube AU4G 35×31 L=1000 mm)

2 – Tube of central seat (tube AU4G 35×25 L=420 mm)

3 – Members (2 tubes AU4G 35×31 L=700 mm)

4 – Tube of framework (tube AU4G 35×31 L=500 mm)

5 – Arm of fork (2 tubes AU4G 35×31 L=250 mm)

6 – Pedals (2 tubes AU4G 35×31 L=250 mm)

7 – Horizontal tube of fork (tube AU4G 35×31 L=250 mm)

8 – Tube principal column (tube AU4G 35×25 L=85 mm)

9 – Complete wheel ALROC (Ø 400 X 80 mm/axis Ø 20 mm)

10 – Balustrades (2 tubes PVC of plumbing Ø 32 mm L=600 mm)

11 – Foam of protection (2 tubes foams Ø 80 mm L=500 mm)

12 – Monocoque chair

13 – Spacers nose gear wheel (2 tubes AU4G or stainless 27×21 L=20 mm)
