Key Clamp Buggy » 07

*

1 – Axle AR
*

has – threaded Spacer steel Ø 20 mm L=56 mm
*

B – Threaded rod steel Ø 20 mm L=180 mm
*

C – Counter-nut stainless Ø 20 mm
*

D – Nylstop self-locking nut stainless Ø 20 mm

For the assembly of the axle AR you will use the tube n°1, in which you will insert in force at each end a spacer (Ø 20 mm) beforehand reduced. To file stop them spacers, do it gradually, with multiple tests; with final the spacer does not have to be able to turn in the axle and it must even slightly deform this one hexagonalement. Attention also not to split the axle by inserting there a spacer not reduced enough…

Cut 2 pieces of threaded rod (Ø 20 mm) a length of approximately 180 mm and screw them in the axle. Very extremely block the counter-nuts by tightening them against the spacers. For the continuation of the assembly, thread at this time two connections Kee Klamp® 45-6 on the axle without tightening them; assemble finally the wheels and gently block with the 2 nylstop self-locking nuts of Ø 20 Misters.

*

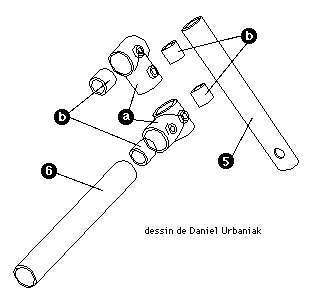

Assembly of the frame:
