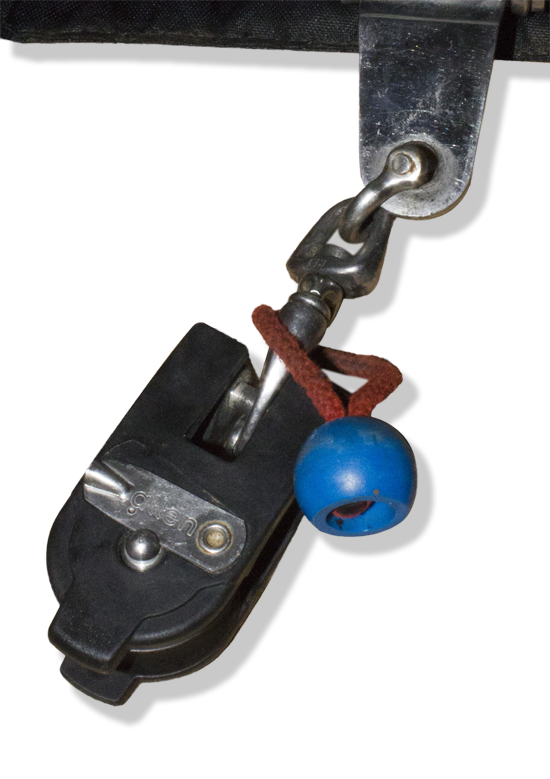

Dynamic Snatch Block 40mm, Wichard Quick Release Snap Shackle with Swivel Eye and 5mm Stainless Steel Bow Shackle

•Dynamic test show these blocks have the bearing performance of an equivalent 50mm Delrin ball bearing block
•Ideal for mainsheet systems, spinnaker launch and retrieval systems and lead blocks for asymmetric spinnakers on boats up to nine metres
•Cold forged soft radiused head
•Anchor formed fixing point reduces rivet size
•Stainless steel dynamic inner bearing
•Made of Acetal resin with composite filled nylon cheeks and 316satinless steel straps and axle
•Sheave diameter 40mm, width 11mm
Wichard Quick Release Snap Shackle with Swivel Eye
The totally smooth oval shape of Wichard quick-release snap shackles make them ideal for brace and spinnaker sheet manoeuvres. The snap shackle opens immediately, and can be released effortlessly using a control line. The tack point version can be fully integrated into sails, enabling it to be brought as close to the edge of the deck as possible. Its well-designed shape facilitates and allows for the optimal fitting of webbing.

Length: 70mm

Work load: 1100kg

Break load: 1500kg

Hook diameter: 14mm

Small hook diameter: 11mm
